When an industrial motor suffers winding failure, replacing the complete motor is not always necessary. If the motor's core, frame, shaft, and other major components remain serviceable, Motor Coil Rewinding may provide a practical route to returning the equipment to operation.
For maintenance engineers in Mumbai, understanding the rewinding process also makes it easier to evaluate repair quality.
Rewinding Starts With Diagnosis
A failed motor should be inspected before dismantling begins.
Technicians need to determine whether the problem is actually in the winding and identify other defects that may have contributed to the failure.
Initial assessment can involve examination of
- Winding condition
- Insulation resistance
- Bearings
- Rotor
- Shaft
- Core
- Terminals
- Cooling arrangement
- Evidence of overheating or contamination
Failure analysis matters because rewinding a motor without correcting the original cause can result in another breakdown.
Existing Winding Data Must Be Recorded
Before the damaged winding is removed, important winding information is documented.
Depending on motor construction, this can include coil configuration, connection details, conductor characteristics, number of turns, slot arrangement, and other technical parameters.
Accurate recording is important because the replacement winding must maintain the motor's intended electrical characteristics.
Damaged Coils Are Removed Carefully
The deteriorated winding is then removed from the stator.
This stage requires care because excessive mechanical or thermal damage to the stator core can affect motor performance.
After removal, slots and core areas are cleaned and inspected. Any signs of damage should be addressed before new winding installation proceeds.
Insulation Is a Critical Part of Rewinding
Copper conductors receive much of the attention, but insulation quality is equally important.
The insulation system separates conductors and electrically isolates the winding from the motor core. Its suitability depends on motor design and operating conditions.
Industrial environments involving high temperatures, moisture, dust, or demanding duty cycles make correct insulation selection particularly important.
New Coils Are Installed and Connected
Replacement coils are manufactured and installed according to the documented winding configuration.
Connections must then be completed correctly, followed by appropriate securing and insulation work.
Errors in winding configuration or connection can affect current, torque, heating, and overall performance, which is why rewinding should be treated as precision electrical repair rather than basic wire replacement.

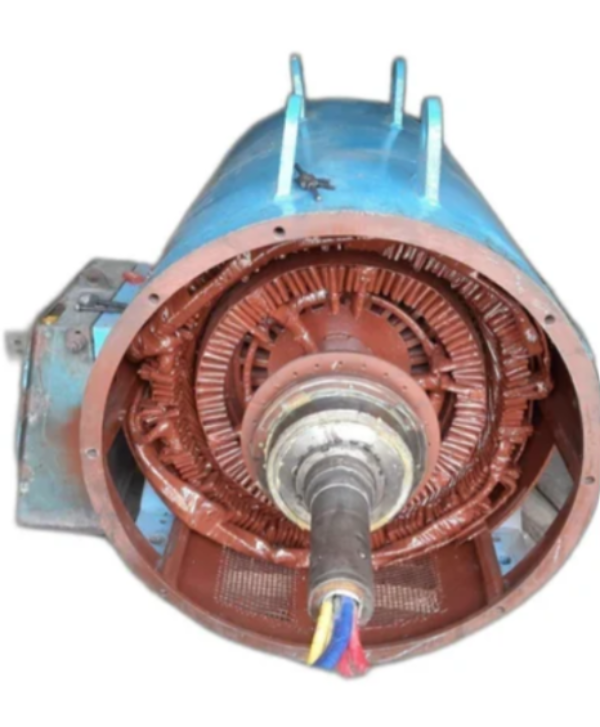

Varnishing and Curing Support Winding Integrity
Depending on the motor and repair method, the winding may undergo varnish treatment and curing.
This helps strengthen the winding assembly, improve insulation protection, and reduce movement of winding components during operation.
The finished winding should be mechanically secure as well as electrically sound.
Testing Verifies the Repair
A rewound motor should undergo appropriate electrical checks before being returned to service.
Testing requirements vary with motor size and design, but the purpose is consistent confirm that winding connections and insulation condition are satisfactory and identify abnormalities before installation.
Mechanical checks may also be necessary when bearings, shafts, rotors, or other components have been repaired.
Prevent the Same Failure From Returning
Once the motor returns to service, investigate operating conditions that may have contributed to the original damage.
Questions worth asking include
- Was the motor overloaded?
- Was ventilation obstructed?
- Was there excessive moisture?
- Were voltage conditions abnormal?
- Did a bearing problem increase load?
- Was the motor frequently starting and stopping?
- Was driven equipment causing excessive mechanical stress?
For facilities in Mumbai, humidity and contamination can also influence insulation condition, particularly where motors operate in exposed or demanding industrial environments.
Gelstar Engineering Services undertakes motor rewinding and related industrial electrical repair work in Mumbai. A properly managed rewinding job should combine diagnosis, winding reconstruction, insulation work, testing, and attention to the underlying cause of failure.
